Introduction

The 210/220 charger extensions are two pieces.  A front mounted tower base, and rear-mounted alignment circle.   Images and dimensions are shown to the right.

The correct shades of blue & green, plus the height & position of the tower and disc are all important.   Getting the colors correct can be tricky.

The height and position of the pink ball is very important for AIBO finding the station, and during final approach.  If the disc is too large/small, AIBO could have difficulty aligning itself.  A marginal solution might allow docking to work occasionally, but fail more frequently than a correct solution.

AIBO bumps into the charger quite a bit while docking, so build accordingly.   Probably the best solution is some thin stiff cardboard, or hardboard, with the disc, tower & charger all taped/glued down.

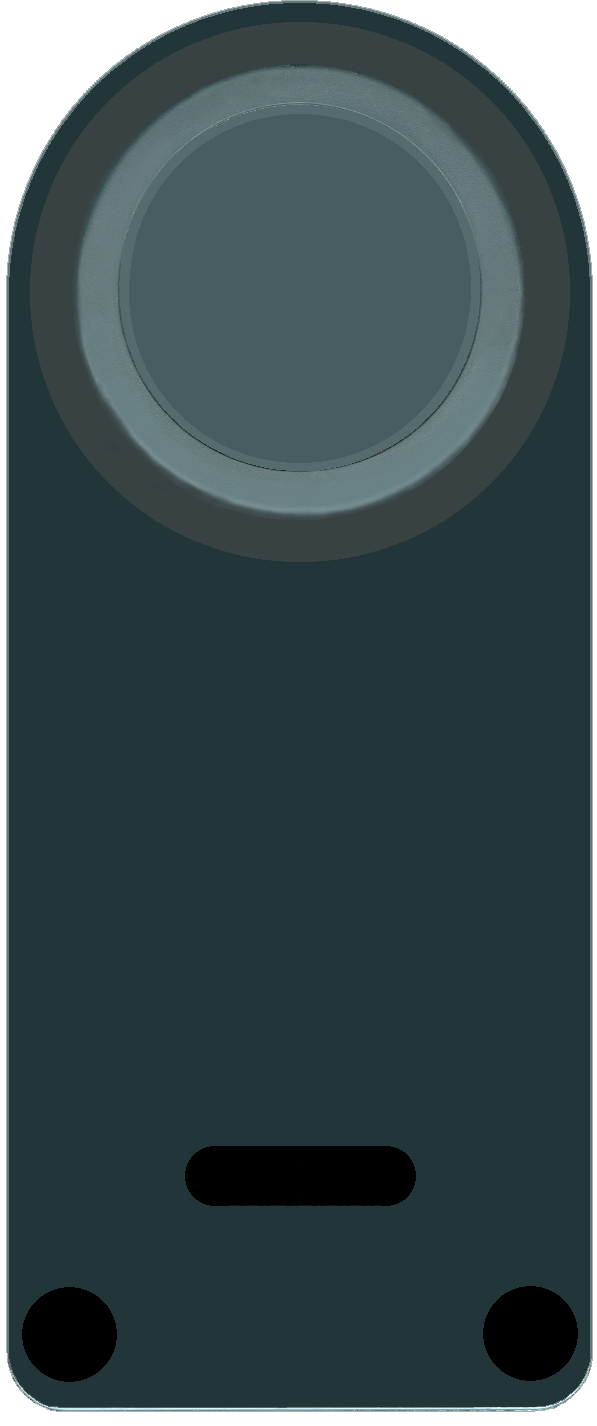

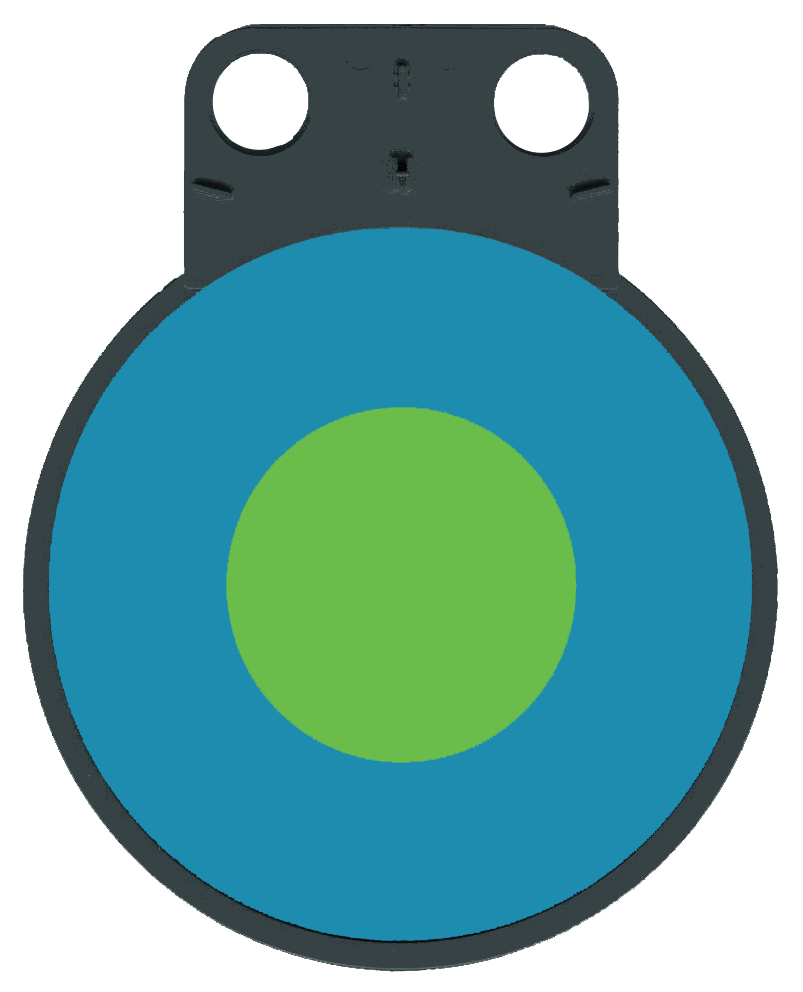

Links to printable 150dpi images of the tower base & circle are also provided, which may help.


Tower & Base Instructions

The top of the pink ball needs to be 8.75" (22.2cm) off the floor, with the center of the ball 5.25" (13.5cm) from the front of the charger.  There must be blue & green on the tower under the pink ball.

The green & blue cylinders are 2.34" (6cm) high.   Diameter of 2.44" (6.2cm).   Circumference of 7.67" (19.5cm).

Make strip of heavy colored paper 7.67" (19.5cm) long by 2.34" (6cm) high, and wrap into a tube to form a cylinder.


Rear Disc Instructions

The rear disc must be blue about 5" (12cm) in diameter, with a smaller 2.38" (6cm) diameter green disc centered.  The disc assembly should touch the back of the charger.


Assembly

Attach tower, base & rear disc as shown below:

Assembled Charger

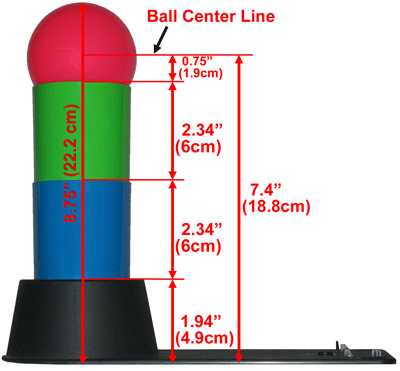

Tower Dimensions

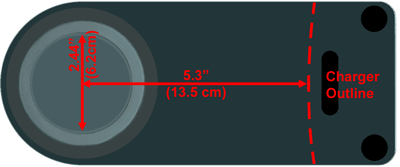

Tower Base Dimensions

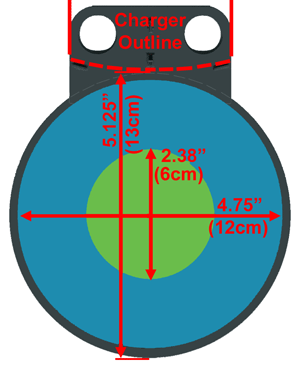

Circle Dimensons
